description

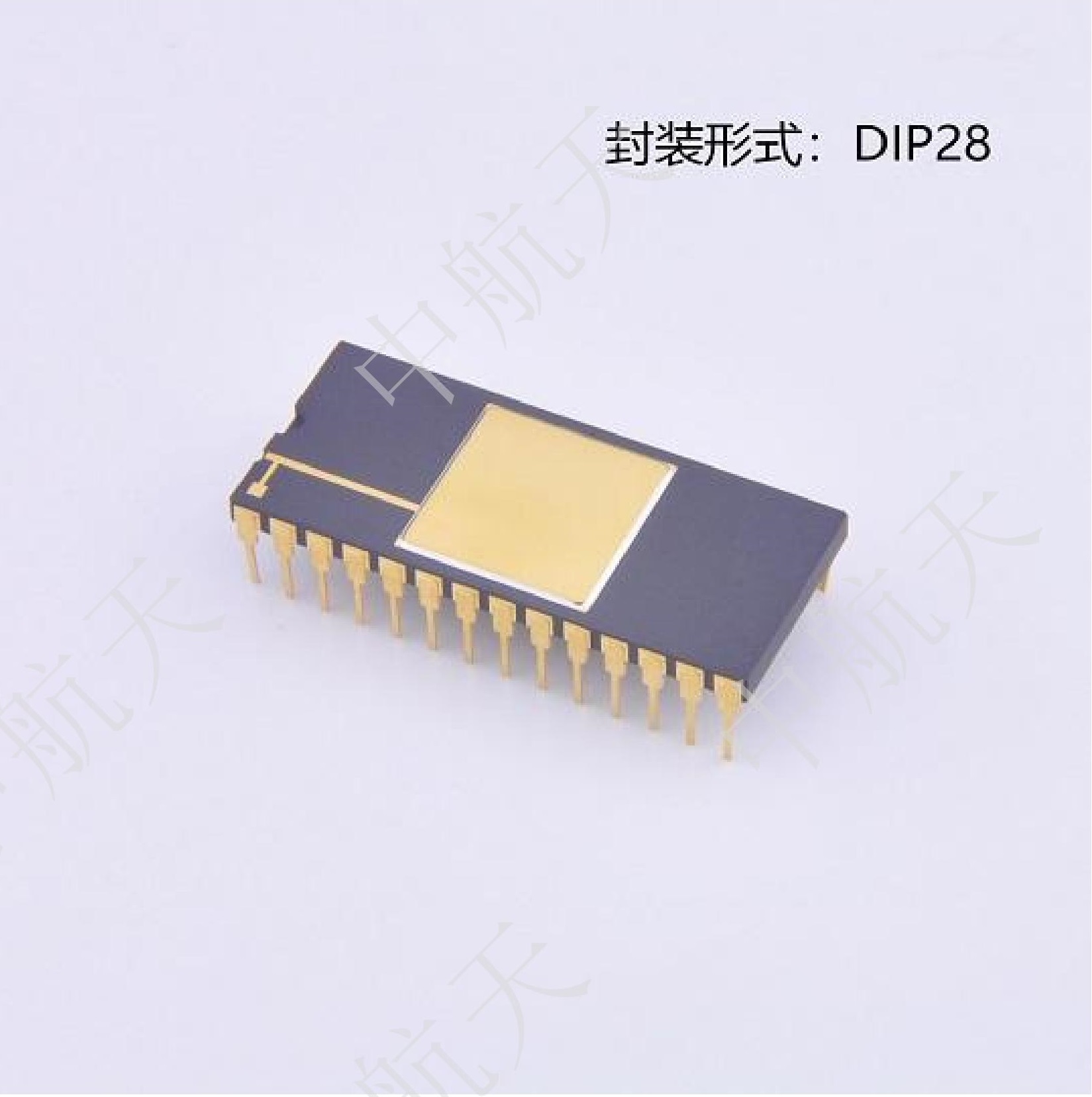

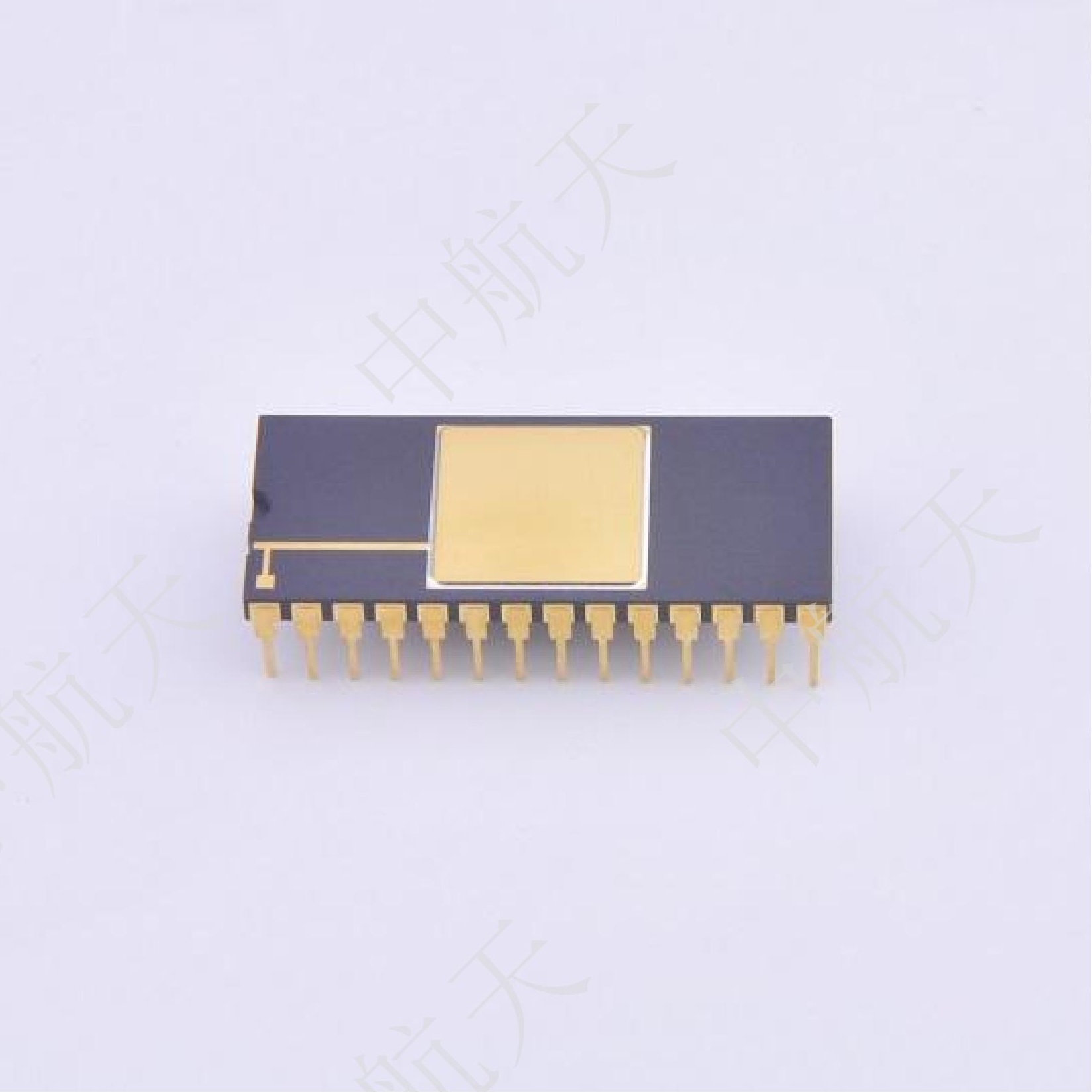

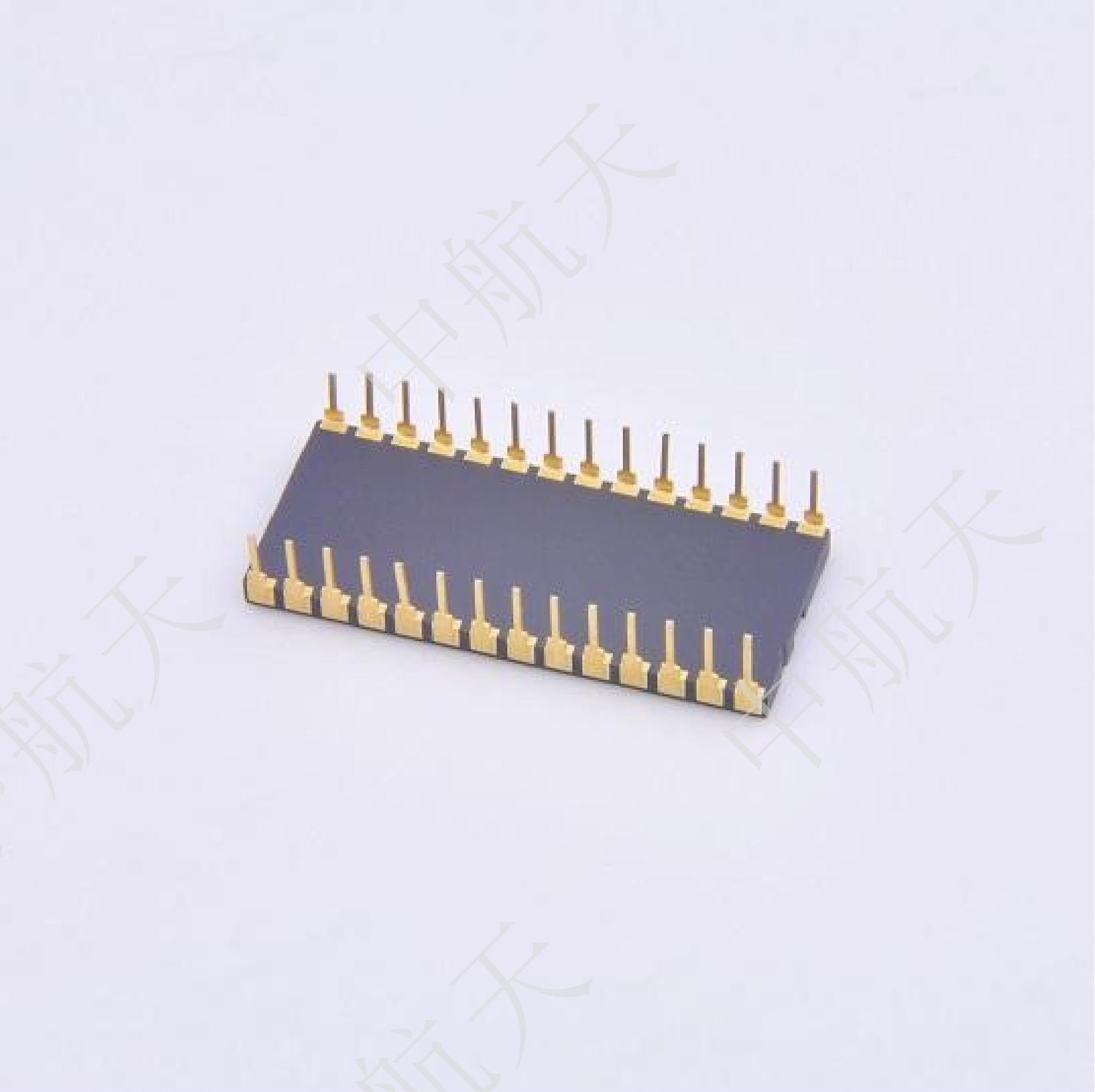

A 600 V three-phase driver IC with typical 0.25 A source and 0.5 A sink current in a 28-pin DIP package for IGBTs and MOSFETs.

characteristic

Floating channel designed for bootstrap operation

Voltages up to 600V at full operation

High allowable negative transient voltage

Not affected by dV/dt

Gate drive supply voltage range: 10 to 20V

Full channel undervoltage lockout

Typical dead time 2.5 μs (CK2130)

A typical dead time of 0.8 μs (CK2132) option is available

An overcurrent shutdown shuts down all six drives

Independent half-bridge drives

Full channel match propagation delay

2.5 V logic compatible

The output is not in phase with the input

Prevents cross-conduction logic
