1. Product overview

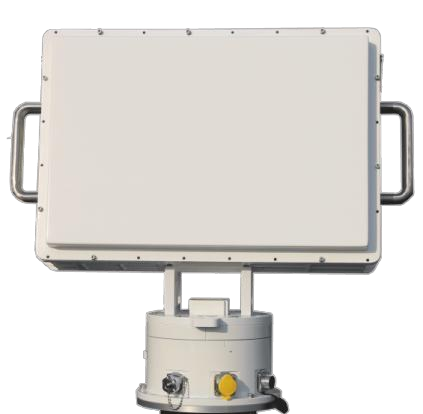

    XR-RD04  low altitude  Detection AI  radar  is  Ku-band  phased array  radar, which based  on  the  all-solid-state,  fully   coherent,   pulse  Doppler  system ,using

 machine learning technology to achieve clutter suppression in complex scenes . The radar can detect and track "low, small and slow" targets all weather and adopts azimuth Sweep scan and Elevation phase scan to provide a high target update rate.

2. Technical index

4. techn ica l character ist ics

1) series, more products

Multi-band : a series radars include X band and Ku band ;

Wide range : provide the series radars which detect the UAV of RCS=0.01 ㎡ from 1.5km to 10km ;

2) Excellent performance and full function

Intelligent : machine learning technology, adaptive position environment automatically, which the radar works directly after changing the work position.

Strong detection : a series radars with high detection ability, low false alarm, which can detect high-speed maneuverable flying UAV stably ;

Full function : a series radars for all the environments including low altitude, ground or sea ;

AI : AI technology used to achieve Classification and recognition for the targets such as drones, birds, people and vehicles etc ;

All-weather : a series radars with cloud and rain clutter suppression function, which work with all-weather condition ;

Automation : built-in the inclinometer module and GPS module, which realize the angle compensation and north calibration function automatically.

3) Software definition

Elevation settings : Elevation coverage can be configured ;

Range settings : different ranges can be configured ;

Mode settings :  different working modes can be configured (such as switching sweep scanning mode and phase scanning mode ) ;

Update rate settings: different target update rates can be configured.
