1. Product overview

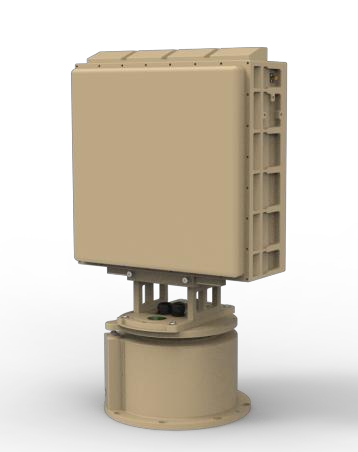

XR-RD08 series X-band phased array radar adopts all-solid state, fully coherent, pulse  Doppler  system ,   based  on  machine  learning  and  AI

 intelligent  recognition technology, can detect , track and identify "low, small and slow" targets all weather. The radar  adopts  the  mode  of  two-dimensional  phase  scanning  combined  with  Sweep scanning,  which  has  the  capability  of  full  airspace  coverage  and  two-dimensional phased array, and the cost performance is higher. This series of radar products provide 3 detection ability for 3km/5km/8km.

2. Technical indicators

Type	XR-RD08A	XR-RD08B	XR-RD08C
Frequency	X-band
Detection	≥5Km (RCS: 0.01㎡)	≥8Km (RCS: 0.01㎡)	≥3Km (RCS: 0.01㎡)
Blind Zone	≤200m		≤100m
Field of View	Azimuth: 360° , Elevation: 0°~30°  (Elevation can be configured)
Tracking	Sweep scan tracking /TAS function
Speed	1m/s~ 100m/s
Accuracy	Distance: <10m, Azimuth: <0.5° , Elevation: <0.5°		Distance: <10m, Azimuth: <0.5° , Elevation: <1°
Update Rate	Search: ≤3.2s, TAS:  ≤0.5s	Search: ≤3.5s, TAS:  ≤0.5s	Search: ≤3s, TAS:  ≤0.5s
Weight	≤28kg	≤30kg	≤28kg
Power	DC24V/220VAC
Operating Power	≤330W	≤530W	≤250W
Size	≤586mm*316mm*240mm
Operating Temp	-40℃~+60℃

3. App l icat ion f ie ld

4. techn ica l character ist ics

1) series, more products

Multi-band : a series radars include X band and Ku band ;

Wide range : provide the series radars which detect the UAV of RCS=0.01 ㎡ from 1.5km to 10km ;

2) Excellent performance and full function

Intelligent : machine learning technology, adaptive position environment automatically, which the radar works directly after changing the work position.

Strong detection : a series radars with high detection ability, low false alarm, which can detect high-speed maneuverable flying UAV stably ;

Full function : a series radars for all the environments including low altitude, ground or sea ;

AI : AI technology used to achieve Classification and recognition for the targets such as drones, birds, people and vehicles etc ;

All-weather : a series radars with cloud and rain clutter suppression function, which work with all-weather condition ;

Automation : built-in the inclinometer module and GPS module, which realize the angle compensation and north calibration function automatically.

3) Software definition

Elevation settings : Elevation coverage can be configured ;

Range settings : different ranges can be configured ;

Mode settings :  different working modes can be configured (such as switching sweep scanning mode and phase scanning mode ) ;

Update rate settings: different target update rates can be configured.
