1. Product overview

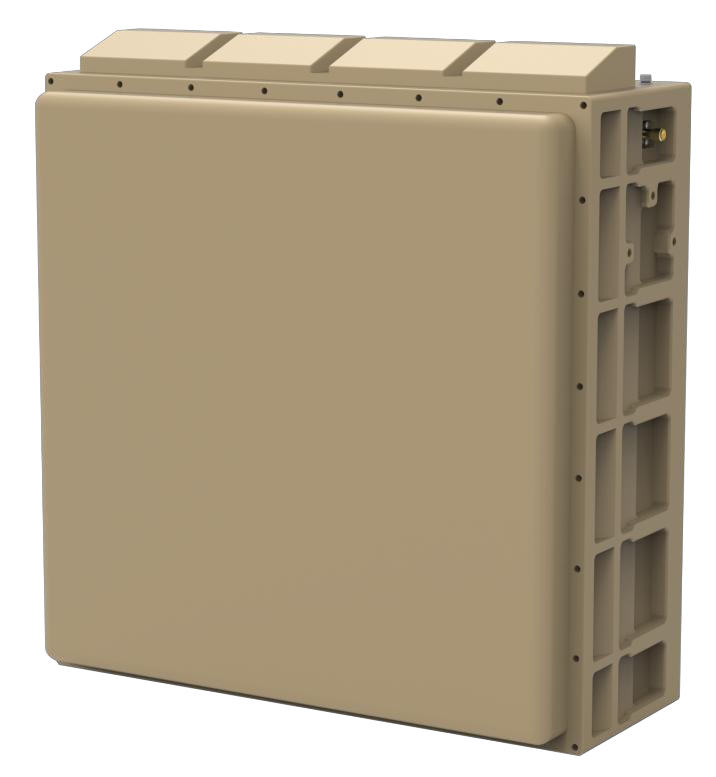

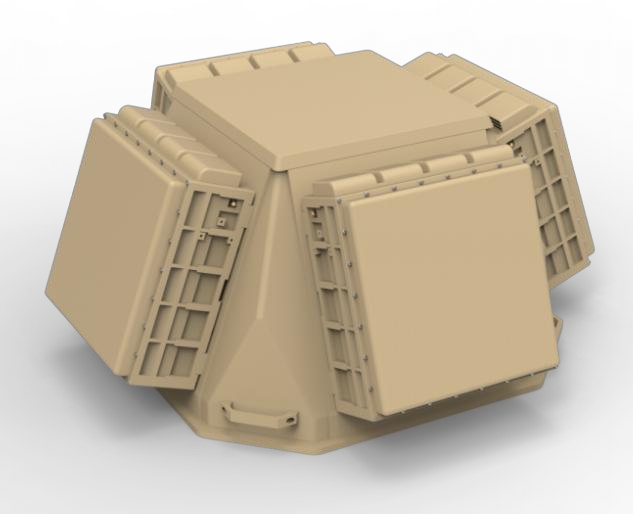

    XR-RD05 series of low-altitude Detection AI radar is Ku-band phased array radar, which based on all-solid-state, fully coherent, pulse Doppler system , using the machine learning and AI intelligent recognition technology to detect, track and identify "low, small and  slow" targets with  all weather.The  radar  adopts  a two-dimensional  phase scan technology to meet the requirements of 3 application scenarios .

2、Technical specifications

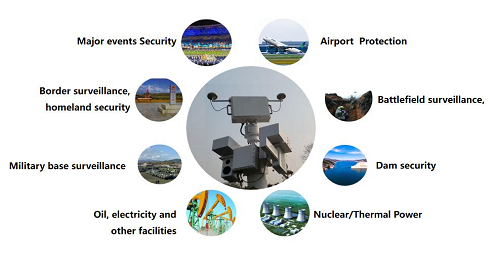

3. App l icat ion f ie ld

4. techn ica l character ist ics

1) series, more products

Multi-band : a series radars include X band and Ku band ;

Wide range : provide the series radars which detect the UAV of RCS=0.01 ㎡ from 1.5km to 10km ;

2) Excellent performance and full function

Intelligent : machine learning technology, adaptive position environment automatically, which the radar works directly after changing the work position.

Strong detection : a series radars with high detection ability, low false alarm, which can detect high-speed maneuverable flying UAV stably ;

Full function : a series radars for all the environments including low altitude, ground or sea ;

AI : AI technology used to achieve Classification and recognition for the targets such as drones, birds, people and vehicles etc ;

All-weather : a series radars with cloud and rain clutter suppression function, which work with all-weather condition ;

Automation : built-in the inclinometer module and GPS module, which realize the angle compensation and north calibration function automatically.

3) Software definition

Elevation settings : Elevation coverage can be configured ;

Range settings : different ranges can be configured ;

Mode settings :  different working modes can be configured (such as switching sweep scanning mode and phase scanning mode ) ;

Update rate settings: different target update rates can be configured.
