1. Product overview

XR-RD07 series X-band four-sided array radar, composed of four two-dimensional phased bursts,which based on all-solid-state, fully coherent, pulse Doppler system , using machine learning and AI intelligent recognition technology to detect, track and identify "low, small and slow" targets with all weather. Compared with Sweep scan radar, the radar can provide multi-target tracking function ，which has higher reliability and better recognition ability. This series of radar products provide 3 detection ability for 3km/5km/8km.

2. Technical indicators

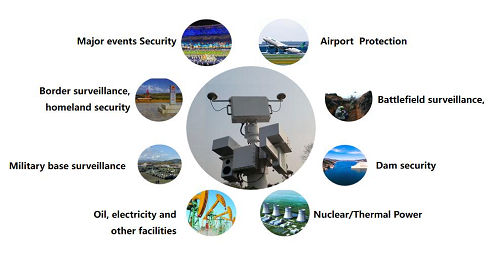

3. App l icat ion f ie ld

4. techn ica l character ist ics

1) series, more products

Multi-band : a series radars include X band and Ku band ;

Wide range : provide the series radars which detect the UAV of RCS=0.01 ㎡ from 1.5km to 10km ;

2) Excellent performance and full function

Intelligent : machine learning technology, adaptive position environment automatically, which the radar works directly after changing the work position.

Strong detection : a series radars with high detection ability, low false alarm, which can detect high-speed maneuverable flying UAV stably ;

Full function : a series radars for all the environments including low altitude, ground or sea ;

AI : AI technology used to achieve Classification and recognition for the targets such as drones, birds, people and vehicles etc ;

All-weather : a series radars with cloud and rain clutter suppression function, which work with all-weather condition ;

Automation : built-in the inclinometer module and GPS module, which realize the angle compensation and north calibration function automatically.

3) Software definition

Elevation settings : Elevation coverage can be configured ;

Range settings : different ranges can be configured ;

Mode settings :  different working modes can be configured (such as switching sweep scanning mode and phase scanning mode ) ;

Update rate settings: different target update rates can be configured.
